Sherman Island: 2008-02-20 11:58:00 (DOY 51)
Author: Ted Hehn
Others:


Fan screens on pump box are clogged with debris. Little or no air flow.

Remove CR10X program SI_19 and install SI_20

CR23X battery is lead calcium chemistry.

Theta probes are causing problem in AM416 mux whenever probes are powered up. Leave powered off. No Theta probe data being collected. Noticed PRT reading showed
–263 degree C. This explains the drop outs we are seeing in the data.

Check pressure resolution and logger P02 command is on 2500 mV scale. Pressure xducer is 2200 mV so resolution is correct.

Sonic anemometer crashed no xmit led flashing. Power down and then up twice and sonic begins to function.

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

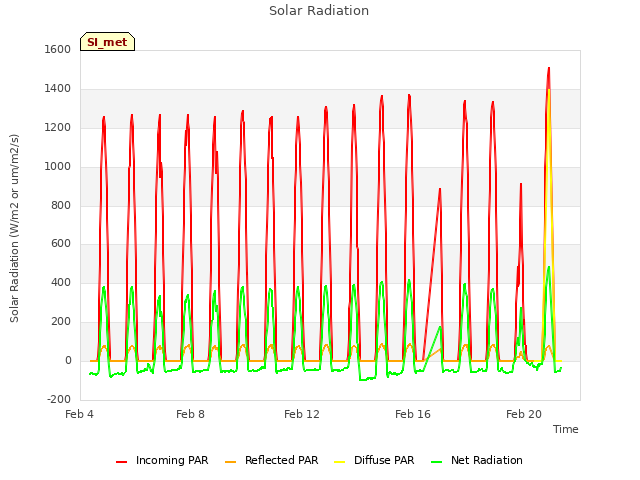

Explore the graph:Solar Radiation in a new window

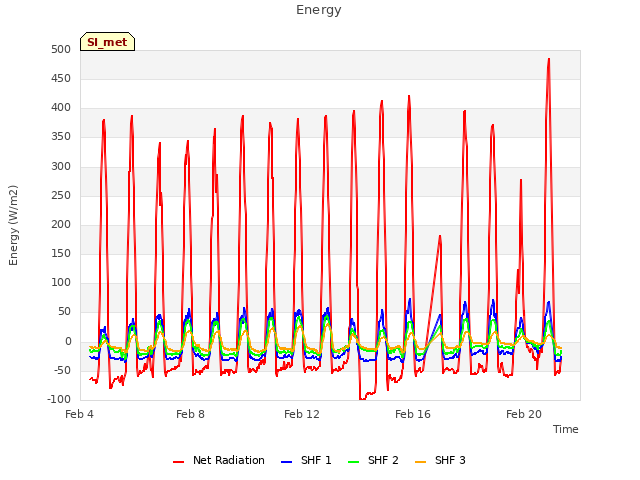

Explore the graph:Energy in a new window

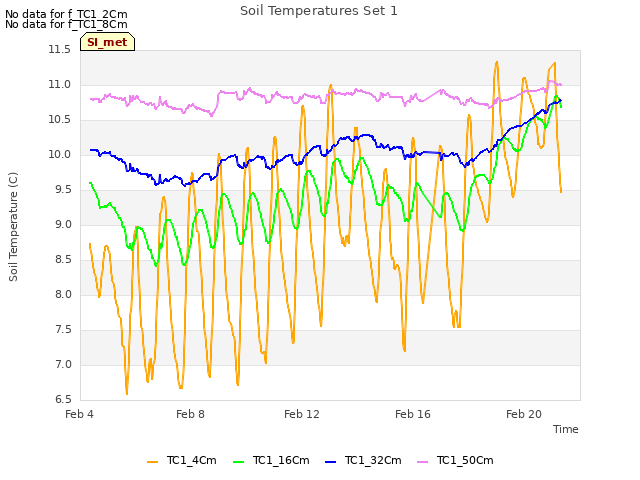

Explore the graph:Soil Temperatures Set 1 in a new window

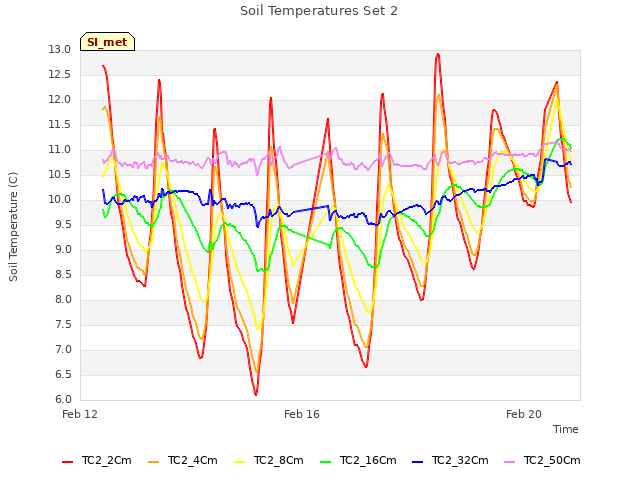

Explore the graph:Soil Temperatures Set 2 in a new window

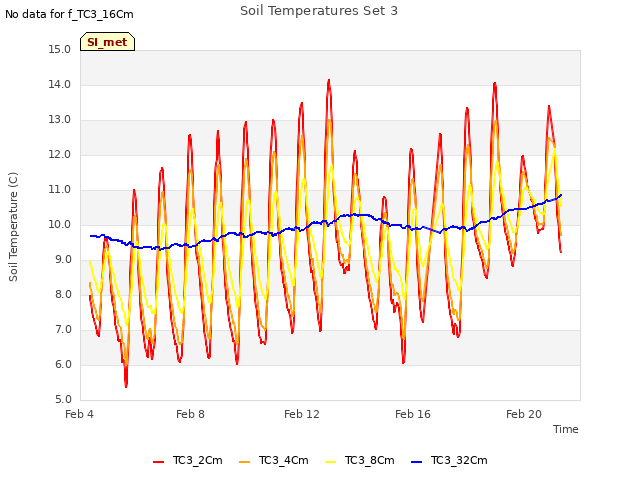

Explore the graph:Soil Temperatures Set 3 in a new window

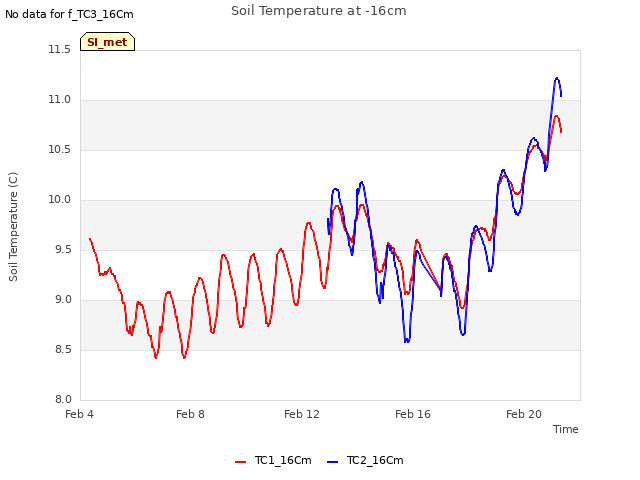

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

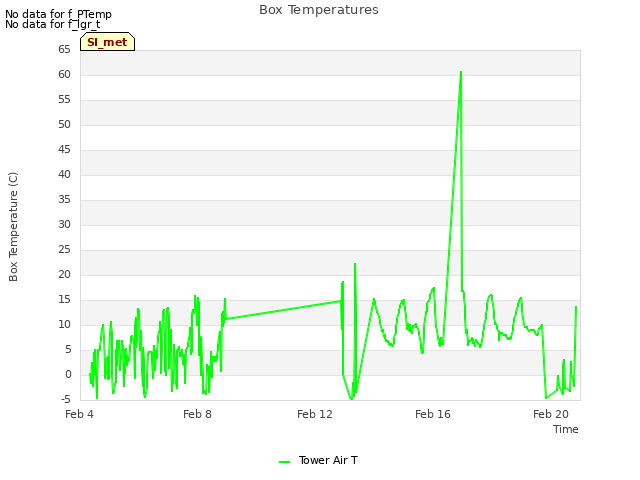

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

Explore the graph:Theta Probes in a new window

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

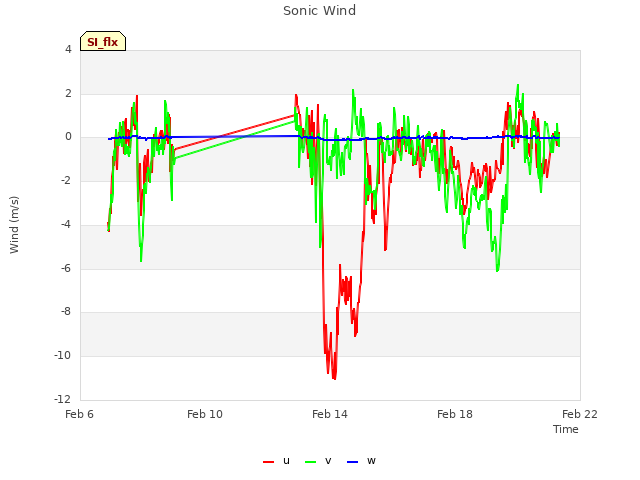

Explore the graph:Sonic Wind in a new window

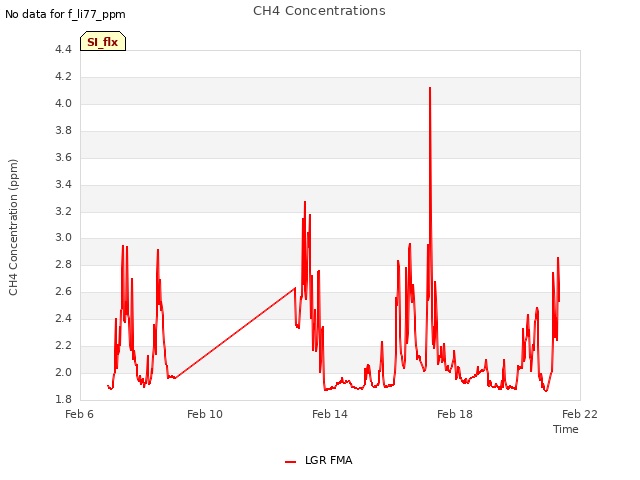

Explore the graph:CH4 Concentrations in a new window

Explore the graph:Sample Counts in a new window

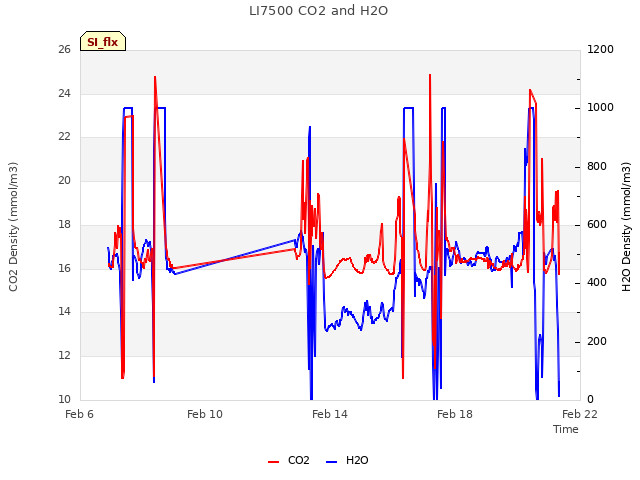

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
