Field Notes

<--2001-03-29 10:00:00 | 2001-04-08 10:00:00-->
Phenocam link: Searching...

Tonzi: 2001-04-03 11:30:00 (DOY 93)
Author: Nancy Kiang
Others: Lianhong

Summary: Working on sap flow stations, tree cores.

WHO: Nancy Kiang, Lianhong Gu
WHERE: Tonzi Ranch
WHEN: 4/3/01
WEATHER: ~65°F, hazy, sunny
WHAT:
- Replace broken heaters at Saplow Q setup.
- Take tree cores from sapflow trees.
- Download soil, met, and sapflow data.
- Reset gillsonic SETUP file to rawdata=1 (log raw data)
- Checked if computer on standard time: yes.

Arrived ~11:30 am.

- Mr. Tonzi showed us a tree, 30.5" circumference (24.7 cm diameter), that he is willing to cut down for Nancy's lab experiment.

- Interrupted understory system 12:46-1:26 pm. PC208W was not running.
-Downloaded CR10X2, CR23X, CR10X4, CR10X5 data
o put *.dat files into folder tonzi/tonzi032401to040201
- Checked computer is on Standard Time
- Reset SETUP file for gillsonic to rawdata = 1, to log raw data.

- Interrupted CR10X4, Sapflow Q at 1:30 pm
- Replaced broken heaters in Sapflow Q setup:
- Tree 245, installed heater H16
- Tree 255, installed heater H17
- See notebook for resistances with and without long leads.

- Lianhong took cores from sapflow trees (Haglöf increment borer, #63269, 3-thread, 5.15 mm core, 12", borrowed from Todd Dawson's lab):
- Got all trees except #79 (borer bit broke)
- Tree #252 is rotten inside (a lot of water gushing out through borer hole)
o Lianhong remarked that knobby trees with many low branches tend to be unhealthy trees.
o Core is okay through sapwood, but heartwood is rotten.

- Finished at 3:00 pm and went to UC Davis to see Robert May talk.

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
No data found for TZ_tmet.
No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

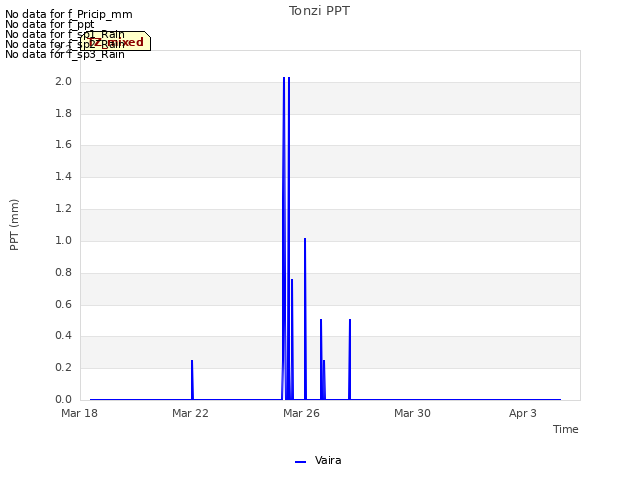

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

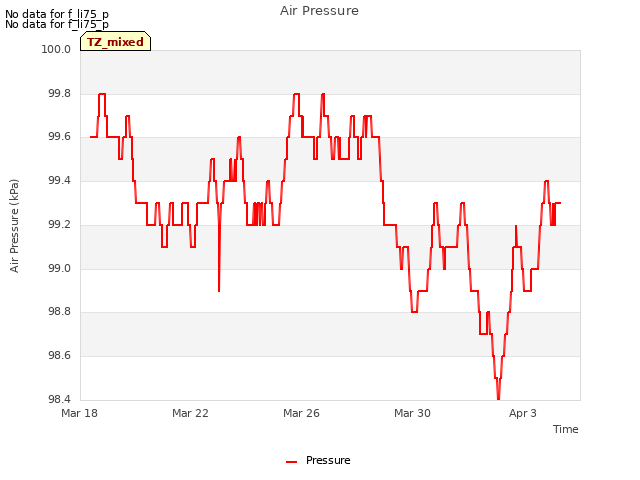

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

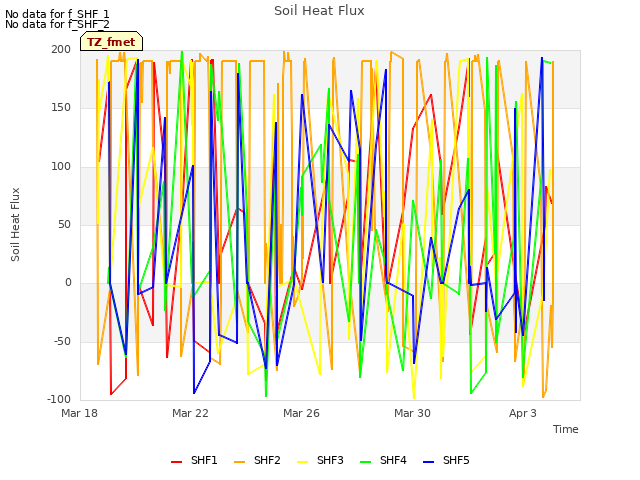

Explore the graph:Soil Heat Flux in a new window

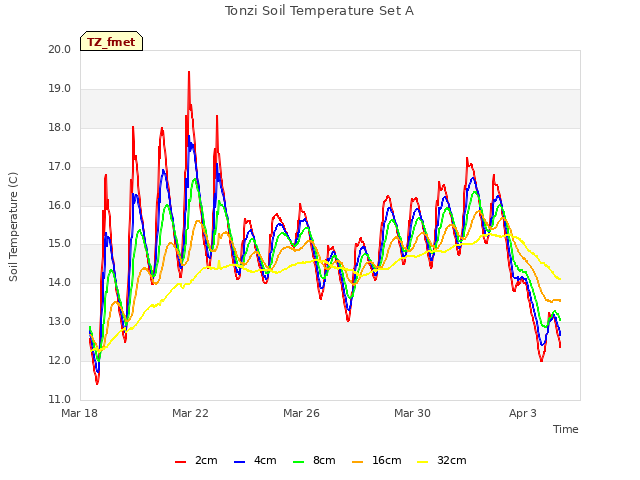

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

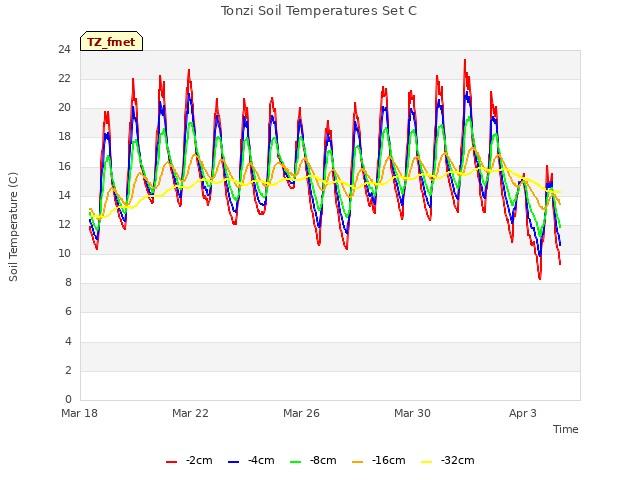

Explore the graph:Tonzi Soil Temperatures Set C in a new window

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

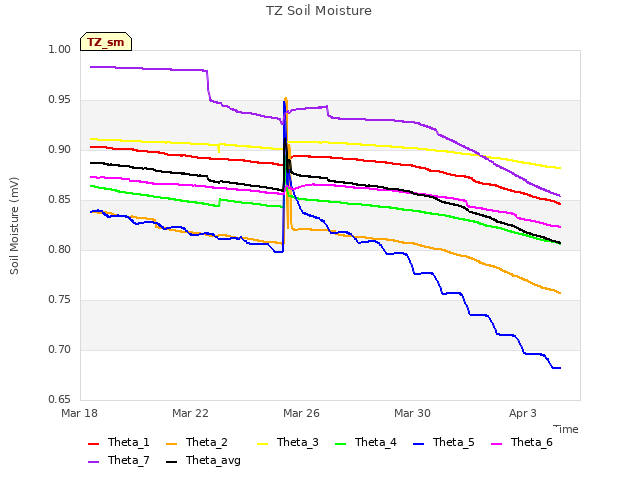

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

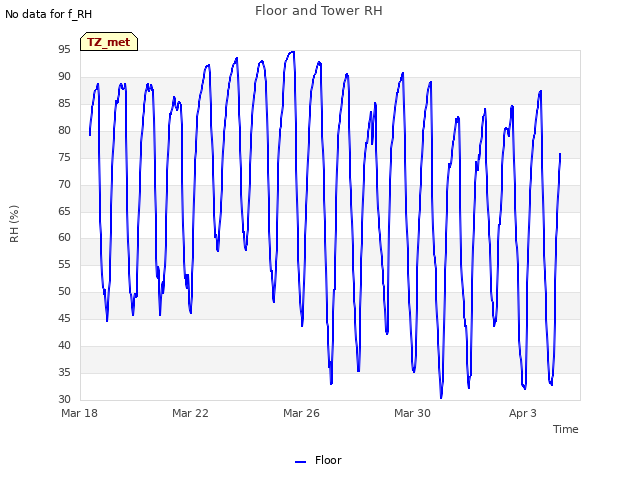

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
